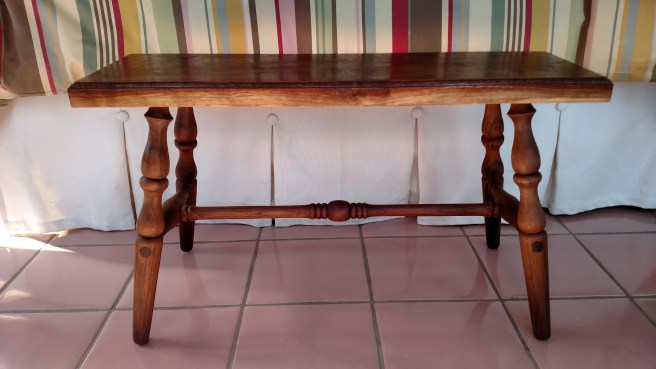

This is a small windsor style bench made from Walnut. The legs and stretchers were turned from pieces riven (split) directly from the freshly cut log. The joinery here is the same that I use in my stools: through wedged mortise and tenon joints attach the stretchers to the legs, and tapered through wedged mortises and tenons join the legs to the seat. The seat is made from a piece of air dried wood that was milled quite a few years ago. James Krenov was an influential cabinet maker and teacher: he taught at College of the Redwoods in California and wrote “A Cabinetmaker’s Notebook.” He believed that air dried wood had many qualities that made it superior to wood cooked in a kiln. He also believed that wood that has been cleanly cut by sharp tools reflects light in a completely different (and superior) way than wood that has been sanded, no matter how finely.
The tops of the tenons are clearly visible in these views of the seat. After assembly, the top of this stool was finished with a smoothing plane
and cabinet scraper: no sandpaper.
The moulding around the edge of the top further complicates the way light is reflected by the seat by adding a curved surface (ovolo) offset by two small flat surfaces (fillets) all around the edge, making it catch the eye.

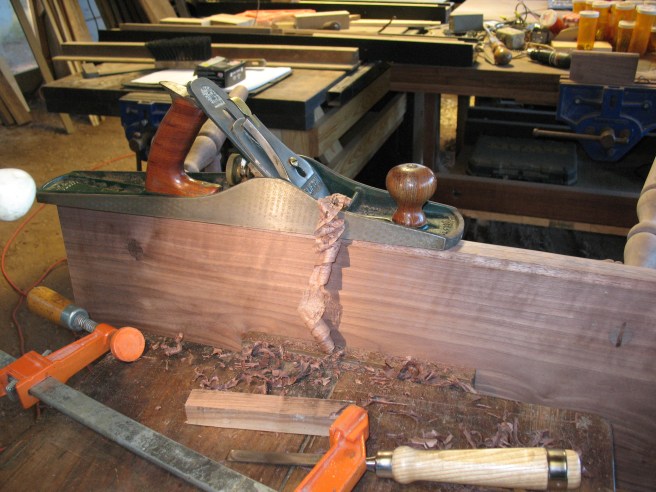

First the edge was trued with a fore plane.
Then the molding was cut using a Record Multi-Plane with a quarter round cutter. The ends were done first: a small block was clamped to the side to prevent the corner from breaking out.
Then the long edges were done.

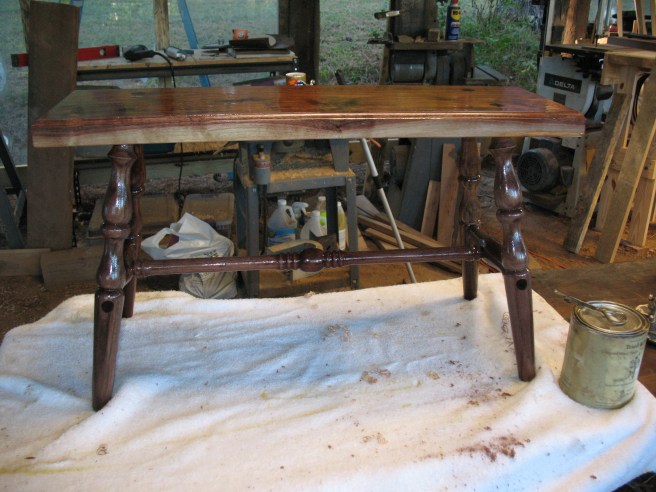

Here it is in the workshop with a fresh coat of finish.
I bought this lathe from Al LeCoff in 1981 and turned on it for 20 years. When I had to move my shop, I didn’t have a place for it right away, so I stored it in a barn for several years. This Christmas I received a VFD (variable frequency drive) which allowed me to have both forward and reverse and variable speed controls on this machine which is now powered by a 2 hp 3 phase motor. I spent the last couple of weeks rebuilding the wooden parts, and Saturday was the first day that I was able to turn on it. The wooden bed on this lathe was 14 feet long when I bought it from Al: I’ve now shortened it to 7 feet. The head and tail stock castings are so large that this leaves me about 4 feet between centers.
Here’s a photo of the tail stock showing the manufacturer’s logo cast into the tool: L. Power & Co. Phila. Pa.

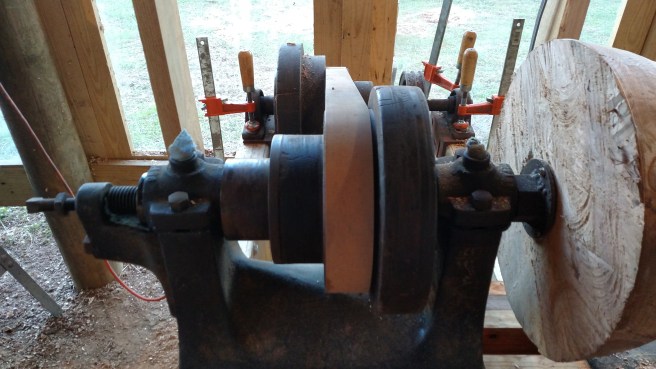

This is the head stock. This machine has babbitt bearings and a bronze thrust bearing on the outboard end. The wooden pulleys were most likely driven by a line shaft at one time. One of the jobs remaining is to mount the jack shaft to the frame: it’s just held by clamps now. One might wonder why I’m inside writing about this in stead of in my shop turning on it. The answer is that it’s barely going to break freezing today and my shop is not heated.
I’ve been building a new workshop. It’s been a challenge balancing working on the building and working in the building. My son, James, has been coming out to help me: we try to divide our time together between working on his projects and working on the shop. We’ve had a lot of fun together, and have accomplished a lot. In this picture you can see that we’ve finished the siding on the end of the building after a significant interruption. We still have to trim around the windows. This week the dogwoods and doublefile viburnum are blooming so it probably looks the best it’s ever looked. This is the view from my house, so what you are looking at is my walk to work.

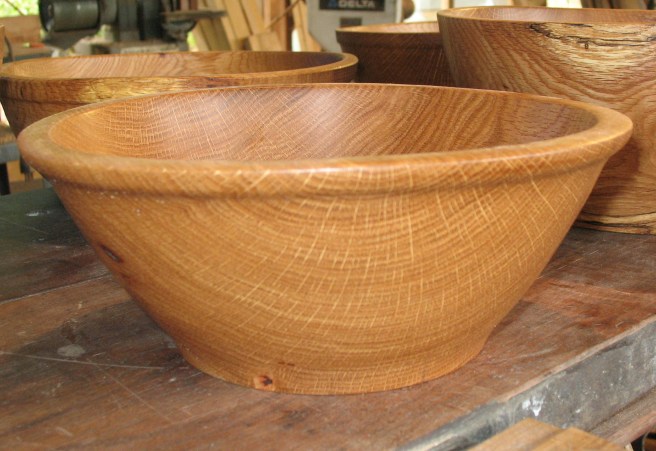

Most of my bowls are rough-turned to a thickness of 1 to 1 1/2 inches from a blank split from a bolt of wood as freshly cut as possible, then dried for several months before being re-turned to a final shape and dimension, sanded, and finished. I start with a bolt; a section cut from the trunk or a limb of a tree.
The bolt will yield two bowls. The first task is to split the bolt right through the heart center or pith.
You’ll note that the blanks pictured are not equal in size. The bolt is split down the heart center or pith, which may or, as in this case, may not be the same as the geometric center. The pith is the dark line running down the face of each blank. Next the blank is sawn into a rough circle on the band saw.
Then the round blank is mounted on a faceplate and fixed to the lathe.
Now the turning begins. This piece is unbalanced so I start with the lathe barely turning. I gradually turn it up till the machine starts to shake, then back off until it stops. In the photos below it appears that the work is turning quite fast because the shavings are flying, but even with the lathe turning slowly a 14 inch disc is moving pretty fast at the circumference. The second photo shows that the gouge spends considerable time in the air. It’s out of the frame in these pictures, but at this stage I keep the butt of the tool handle in my leg or my side for better control.
Once it’s close to the shape I want on the outside of the blank I make a tenon for my chuck to hold. In this case I made a groove, a circular dado, I suppose, so that the chuck jaws can grip the tenon on the inside or be expanded to grip the outside of the dado.Now the bowl blank is removed from the faceplate and mounted in reverse on the chuck.
This piece is still a long way from being balanced, so the lathe is kept at a slow speed and, again, the tailstock is brought up for stability and safety. Facing off the blank will bring it substantially into balance.
In this case, after facing off the top of the bowl blank I decided to re-true the outside so everything would be perfectly balanced. The chuck is supposed to be self-centering, but the tenon may not compress evenly or some other factor may introduce some wobble. This blank will be re-turned once it has dried, so it needn’t be perfect, but if it vibrates very much the inside turning will go much faster once the outside has been re-trued.
This wood is freshly cut: very green. You can see that once I’ve increased the speed of the lathe a bit the sap is flying from the bowl and dripping from the tool rest. I get a nice little shower as I true up the outside.

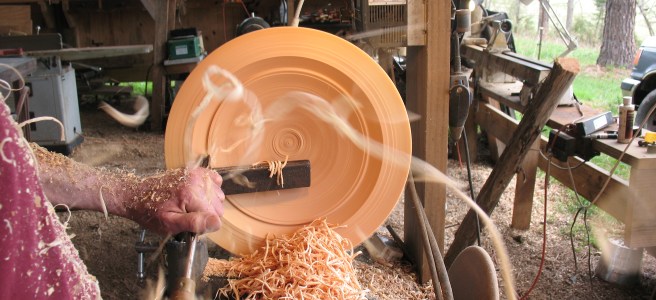

Now we can really make some beautiful curly shavings: balanced blank, green beech, tailstock pulled back out of the way, turn the lathe speed up to 5 or 600 rpm. Let’er rip!
I want an even thickness in the walls and bottom so it will dry without cracking.
There are many ways to dry these bowls. In this case I painted the entire bowl with glue that had been thinned with an equal amount of water. I’ll put it in the heavy grocery bag that I’ve labeled with the date and type of wood and leave it for about 3 months before re-turning it.
This is the same chair made from a hickory tree that grew on our farm. The tree had been badly damaged at the base and I cut it for firewood. The section at chest height was just big enough that I was able to rive these chair parts from it.

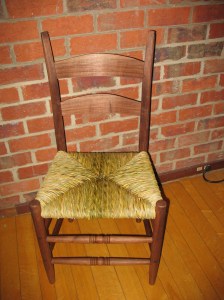

A couple of weeks ago we had our worst winter weather of the year. It was the perfect time to stay indoors and weave my first rush seat.
As with all things there’s a learning curve, and in the finished seat it’s pretty easy to see that I’m just a beginner when it comes to seat weaving.
The material used here is bullrush stems imported from Portugal. Next summer I’ll try to find a stand of narrow-leaved cattails whose leaves I can harvest myself: these are the new world equivalent for seat making.

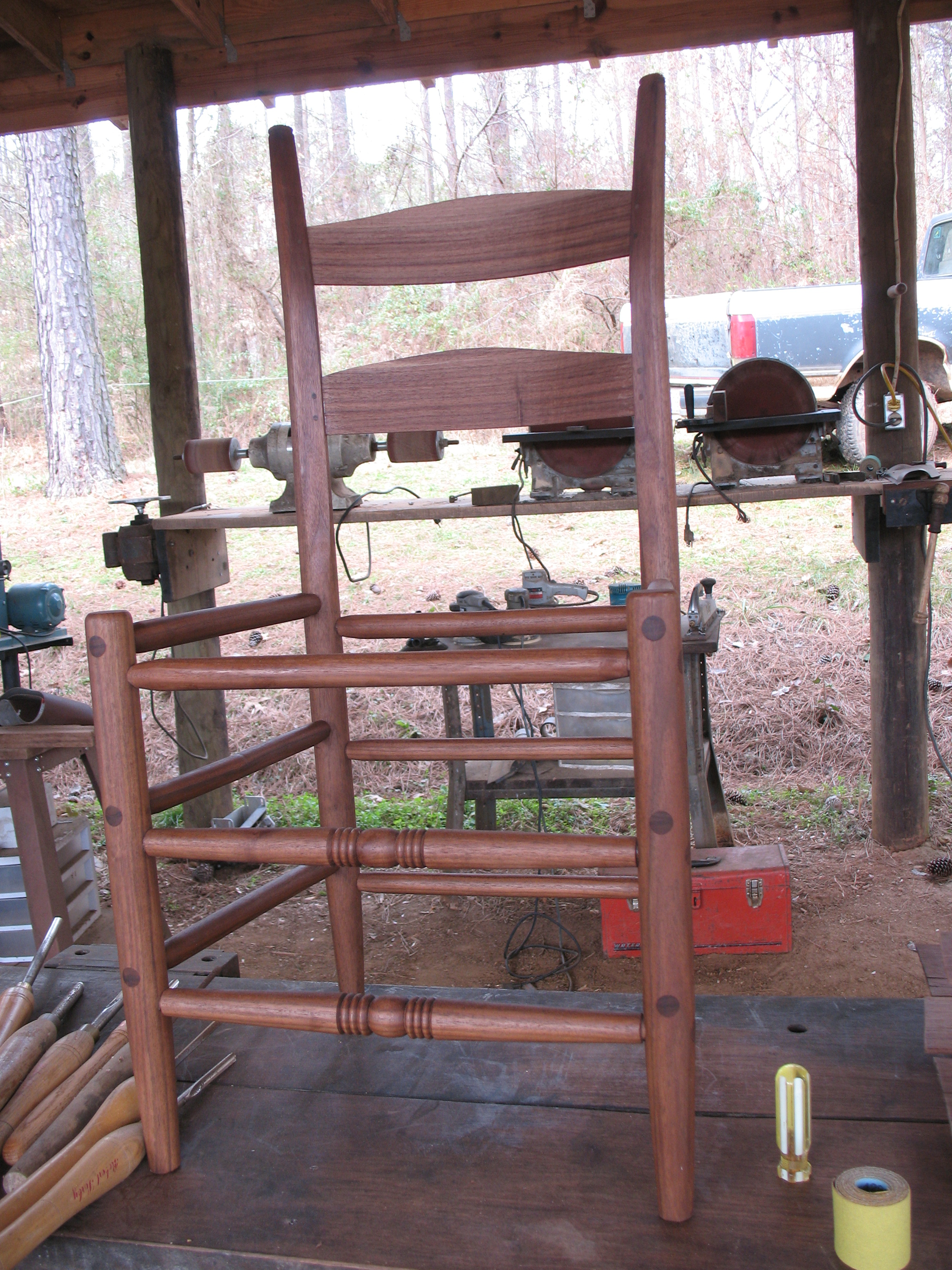

Today I got a first coat of finish on a post-and-rung chair that I’ve been working on for a while. This chair was made following Drew Langsner’s excellent book The Chairmaker’s Workshop. My chair is different from his in that I turned all the parts on the lathe, whereas he makes his using a drawknife and spokeshave. I rived all the pieces from a green walnut log and turned all the parts while the wood was still green. I then dried the rungs in a drying chamber, similar to the one described in the book, before re-turning the tenons and assembling the chair. I used through-wedged.mortise and tenon joints to join the rungs to the legs: Langsner uses blind mortise and tenon joints. The rear posts were steam bent and the back slats were boiled. Now I need to weave a seat.
I’ve been turning and carving spoons for several years. I make these spoons from wood that I have riven straight from the logs of native hardwood trees. I finish them with a product called Tried and True, which is a completely food safe finish made from linseed (flax seed) oil and bees wax. If the spoons are washed and dried right away they retain their beautiful grain and color for a very long time. Putting any hand made wooden item in the dishwasher is pretty close to putting it in the wood stove.
I make salad serving sets, which have matching handles. One of the spoons is carved into a fork.
This is a picture of my son, James, sitting on a stool that I made for him at Christmas. One day last year he was sitting on a stool that I had just finished. He put his foot on one of the stretchers, a natural thing to do, and remarked that his knee was substantially lower than his hip. He pointed out that if you were playing the guitar while sitting on one of these stools, the guitar would keep slipping away from you. He suggested an extra, higher, rung that would place the thigh parallel to the floor, comfortably supporting the instrument. So I made a “Guitar Picker’s Special” for him. Our musician friend Mark Simonsen helped me get the height correct. This one is made of Hickory and Walnut
